Deram311-12

DERAM311-12

APPLICATION

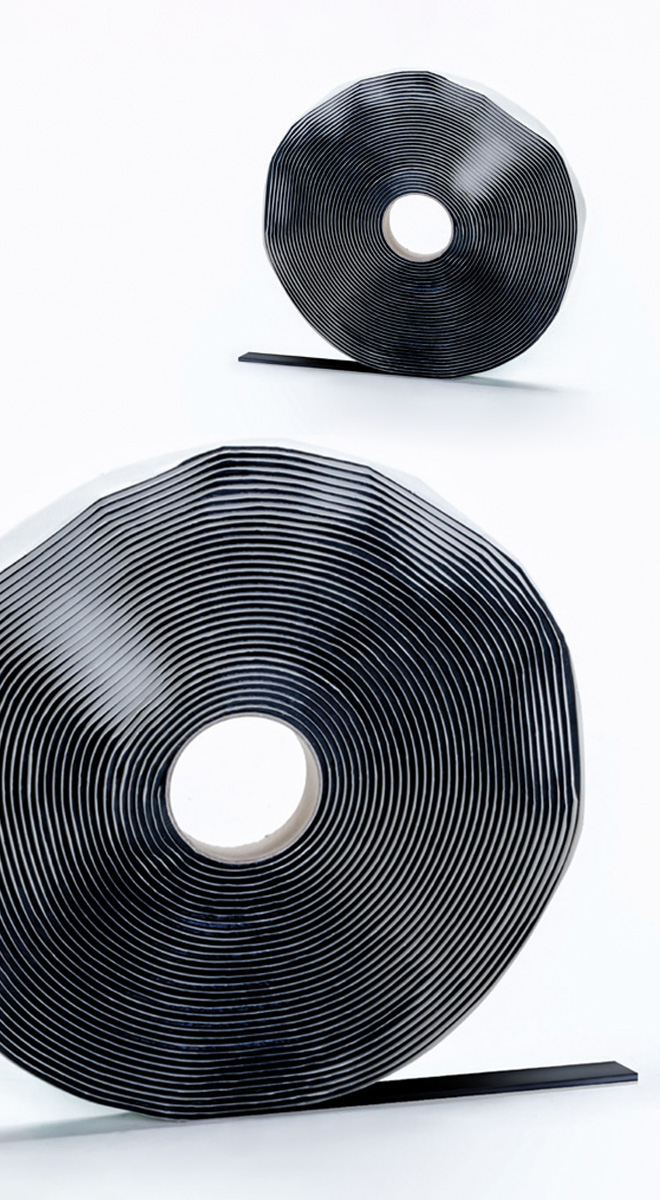

The Guarniflon^® butyl sealants are pre-formed tapes designed to be used in bag-to-tool and bag-to-bag applications on composite and metal tools. Guarniflon^® recommends to test the material prior to be used in production.

CHARACTERISTICS
The main characteristic is the ease of removal without residuals. The compounds are designed to be used only at low, temperatures especially during layup operations.

IMPORTANT
The butyl sealants supplied by Guarniflon^® are allowed to be used as Non Contact Materials within process specifications where these material categories are indicated as Open for procurement. It is recommended to store at 71°F (22°C) and in humidity controlled environments. All butyl sealants supplied are Asbetos free.

NOMENCLATURE
An example of products nomenclature is hereby reported:

DERAM - 311 - 12

Name Temp. in °F Width in mm

Details	U.M./tol	Spec.	Value
Material	-	-	Synthetic Rubber
Colour	-	-	Black
Solidità	%	-	100%
Lunghezza	lm	Internal	15
Larghezza	mm	Internal	12
Spessore	mm	ISO 4593	3
Adesività	N	ASTM D2979	7,5
Temperatura di applicazione	°C (°F)	Internal	10-35 (50-95)
Temperatura di utilizzo	°C (°F)	Internal	23-145 (73-293)

Richieste particolari possono essere inoltrate al personale tecnico di Guarniflon^®.
Emissioni di composti organici volatili totali (TVOC): Test di 30 µg/m³ eseguito da eco-INSTITUTE Germany CmbH, in conformità agli standard SINTEF e ISO16000-6.
